Racking Components
Racking components are essential parts of storage systems designed to ensure strength, stability, and flexibility in warehouse racking setups.

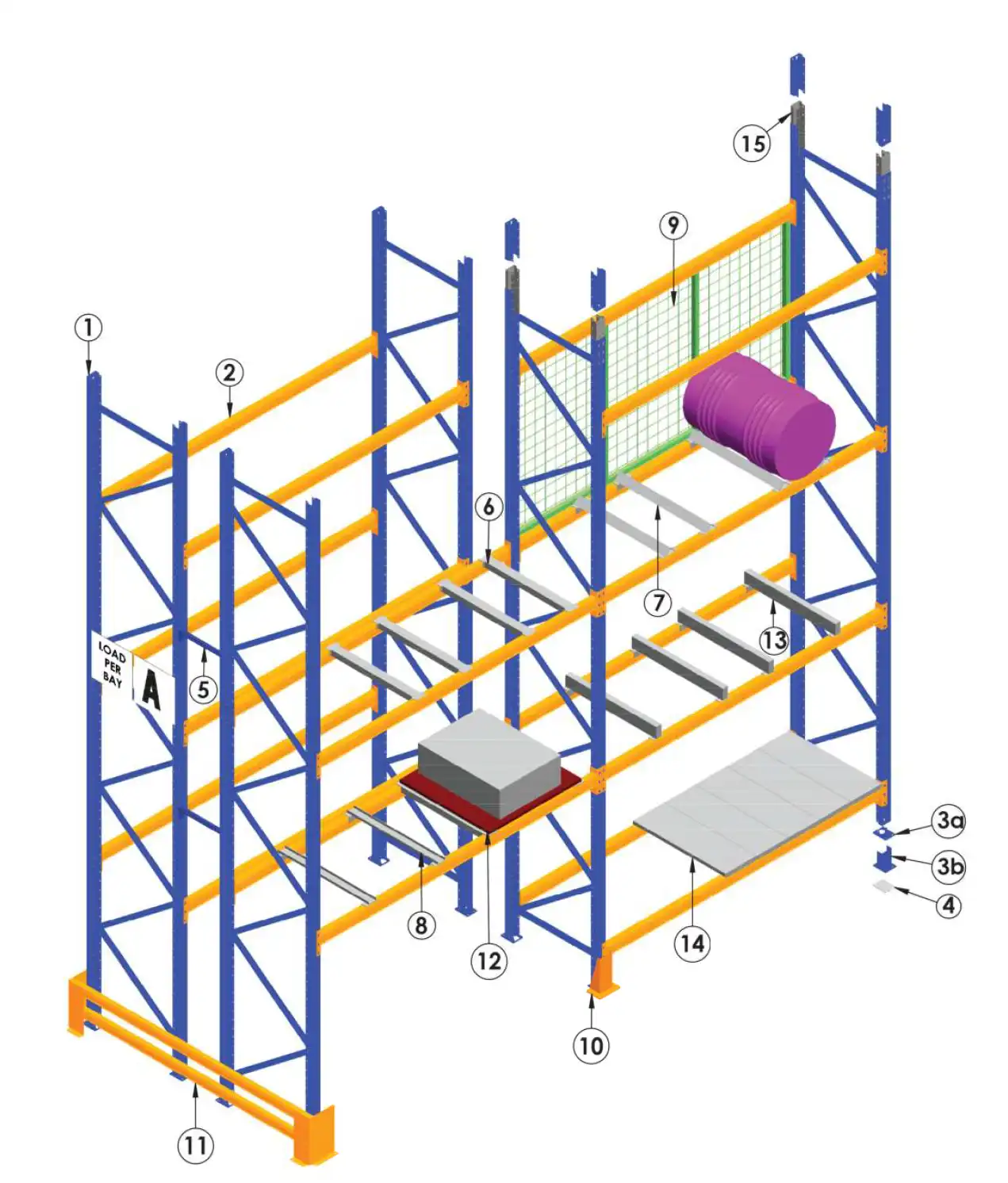

Components and Options
Pallet Racking System
01. Frame
02. Beam
03a. Standard Base Plate
03b. Heavy Duty Base Plate
04. Levelling Plate
05. Row Spacer
06. Pallet Support Bar / Shelf Support
07. Drum Support
08. Pallet Foot Support
09. Safety Mesh
10. Upright Protector
11. Frame Protector
12. Wooden or Metal Shelving
13. Fork Spacer
14. Sectional Shelf
15. Splice Plate
Frame
The Details
Nutech selective pallet racking is made with the same frames as our well established pallet racking system. It is fully screwed in place and particularly well suited to heavy loads. At the top end, the frames are connected to each other with struts in side-to-side and in front-to-back direction. Additionally, the uprights of each frame are linked to each other by horizontal and diagonal struts to ensure that all parts of the frame are solidly connected to provide excellent rigidity.
- 1.6mm, 1.8mm, 2.0mm thick
- N60, N90, N115
- Epoxy coated or Galvanized frame
Hook-in Beam
The Details
Rapid assembly thanks to a straightforward boltless system: The 3 or 4 hooks of the bracket perfectly slot into the upright perforations. Unintentional lifting is prevented by a safety pin which is secured against dropping out by a 90′ turn. The hooked bracket is also designed to hold heavy loads and its height can be adjusted in 75mm intervals.
- Rapid assembly
- Adjustable height
- For heavy-duty applications
Pallet Support Bar
The Details
The pallet support bars provide additional safety and security under your pallet when installed in pallet racking system. Reduce load times because they give forklift driver confidence in loading pal
- Heavy duty, welded cuff design
- Easy installation, drops in place
- Epoxy powder coated
Frame Protector
The Details
The frame protector is placed at the further end of a row to protect the frame from damage or collision with material handling equipment.
- Protects the frame from damage
- Epoxy coated
